Setting Out Plans: What They Are and Why They Matter for Your Garden Project
Summary
Setting out plans are an essential part of the garden design process, turning approved designs into detailed construction drawings that guide every stage of the build. This guide explains what setting out plans are, what they include, and how they help create accurate, efficient and high-quality landscaping projects.
Key Takeaways
- Setting out plans show exactly where every feature should be built.
- They help prevent mistakes, delays and costly changes during construction.
- Plans include details for paving, drainage, structures, lighting and foundations.
- Accurate measurements ensure every element is positioned correctly.
- Setting out plans work alongside other technical drawings to guide the entire project.
- Careful planning leads to a smoother build and a better finished garden.
What Are Setting Out Plans?
Once a garden design has been agreed and a client is happy with the direction of the project, the next stage is translating that creative vision into something a construction team can actually build from.
That is what setting out plans do. Rather than focusing on how a finished garden will look, which is the role of concept drawings and 3D garden visuals, setting out plans focus entirely on where everything should go.
Setting out plans are technical, precise and highly practical documents that communicate construction intent to everyone involved in delivering the project.
A single garden project will typically involve multiple setting out drawings, each covering a different layer or system. Most garden design projects involve foundations and groundworks, paving layouts, drainage, garden structures and lighting drawings.
Together, these drawings form a coordinated package that allows every part of the build to be planned in advance and executed with confidence.
Why Setting Out Plans Are Essential Before Construction Begins
It is tempting to think that a talented installation team can work directly from a concept design or a visual render. In practice, though, design drawings and construction drawings serve very different purposes.
A concept design communicates a vision, whereas setting out plans communicate instructions needed for the garden to come to life.
Without detailed construction drawings, even the most thoughtful garden design is open to interpretation on site. Contractors may make assumptions about dimensions, positions or relationships between features which can lead to outcomes that differ from the original intent.
Setting out plans close this gap, as they provide a single, agreed reference point that every member of the team can work from, regardless of which stage of the project they are involved in.
The benefits are substantial:
- Accurate positioning of all garden features from the outset
- Better communication between designers and installation teams
- Fewer errors and rework during construction
- Improved project efficiency and more predictable timelines
- A finished garden that genuinely reflects the original design
For homeowners, setting out plans translates into greater confidence, fewer surprises during the build and a result that meets expectations.
To learn more about the garden design process and how we ensure success at every stage, see our post From Vision to Reality: Our Expert Garden Designers in Cheshire.
Datum Lines, Dimensions and the Importance of Accuracy In Setting Out Plans
One of the most important elements of any setting out plan is the use of datum lines and reference dimensions.
A datum line is a fixed reference point, typically taken from an existing building or a permanent structure on site, from which all other measurements are calculated.
By anchoring the design to a known, immovable point, the installation team can position every new feature with confidence, knowing that all dimensions relate to something they can physically verify on site.
This matters more than it might initially seem. Gardens are rarely perfectly square, boundaries are often irregular, and buildings are seldom exactly as they appear on an initial survey. Datum lines account for these real-world imperfections and give contractors a reliable framework within which to work.
In practice, this means that features such as paving edges, retaining walls, planting beds and structural posts are all positioned relative to a clearly defined reference, rather than being estimated by eye or measured from imprecise starting points.
It is this level of accuracy that distinguishes a professionally planned garden from one that is simply built to a rough sketch.
To learn more about the benefits of professional garden design, see our post DIY vs Professional Garden Design In Cheshire: When to Call the Experts.
Setting Out Plans To Build From The Ground Up
The first setting out plans focus on everything below ground, including foundations, drainage and underground services. Getting these details right before construction begins provides a solid foundation for every stage of the landscaping project.
This is arguably the most critical stage of the entire project. Errors made below ground are expensive and disruptive to correct once construction is underway. Getting these elements right the first time is essential.
Foundation and groundwork drawings typically cover:
- Foundation locations for patios, raised areas and structural elements
- Retaining walls required to manage changes in ground level
- Drainage runs, which are the routes along which drainage pipes will travel
- Underground service connections, including water feeds and electrical conduits
- Inset manhole covers where existing services need to be made accessible but visually discreet
Each of these elements interacts with the others. Drainage pipes need to pass through or around foundation zones. Electrical conduits need to reach garden buildings or lighting positions without crossing structural footings. Water feeds for fountains or irrigation need to be planned alongside both drainage and hard landscaping.
By working through all of these interactions on paper before any excavation takes place, potential clashes can be identified and resolved at the planning stage rather than mid-build when they become considerably more costly and time-consuming to address.
Drainage Planning: Getting the Invisible Details Right
Effective drainage is one of the most important, and frequently underestimated, aspects of any landscaping project. A garden that drains poorly will suffer from waterlogging, surface damage and long-term deterioration of materials, regardless of how well everything else has been installed.
Setting out plans identify exactly where drainage channels, pipework and inspection covers should be located across the site. This includes:
- Surface drainage channels at patio edges and transitions between materials
- Drainage pipe routes connecting surface points to soakaways or existing drainage systems
- Inspection cover positions that keep infrastructure accessible without creating visual eyesores
- Relationships between drainage and adjacent features such as planting beds, walls and paving
Planning drainage at this level of detail also ensures compliance with relevant regulations, particularly where hard landscaping covers large areas or connects to public drainage systems.
Homeowners rarely see the drainage infrastructure once a garden is complete, but they would certainly notice if it had not been planned properly, which is why setting out plans are so essential.
How Setting Out Plans Guide Paving Installation
Paving is often the most visually prominent element of a garden design, and it is one area where careful planning is essential.
A paving setting out plan goes far beyond simply showing which material will be used. It establishes:
- The starting point for the paving or patio layout, chosen to ensure balanced cuts and consistent proportions across the space
- Joint widths appropriate to the material being used, for example, a six millimetre joint tolerance for large-format porcelain paving
- Cutting positions, including where cuts will occur at boundaries, edges, and transitions to other features
- Pattern direction and how the paving will be orientated relative to the house and garden
- The relationship between paving and adjacent elements such as planting beds, manholes, steps and walls
Getting this right matters for a number of reasons. Poor paving planning can result in awkward, narrow cuts at the most visible edges of a space, the kind of detail that catches the eye even when everything else looks good. It can also lead to misalignment between the paving grid and features such as drainage channels or step edges, creating a finished result that feels slightly off even when it is difficult to identify exactly why.
By working through the paving layout on paper in advance, the design team can anticipate these issues and adjust the plan accordingly, ensuring the installation team starts from a position that will yield a balanced, well-proportioned result.
Working with one company for the entire project ensures a seamless experience, taking your garden from the setting out plans to reality with accuracy and skill. To learn more, see our post Benefits of a Design and Build Company For Your Garden Project.
Lighting and Electrical Plans: Planning Services Before Hard Landscaping Is Installed
Outdoor lighting has become an increasingly important part of contemporary garden design. Carefully positioned lighting can transform how a garden looks and feels after dark, extending the time a space can be enjoyed and creating an atmosphere that complements the daytime planting and hard landscaping.
The key to successful garden lighting is planning it before the hard landscaping goes in, not after.

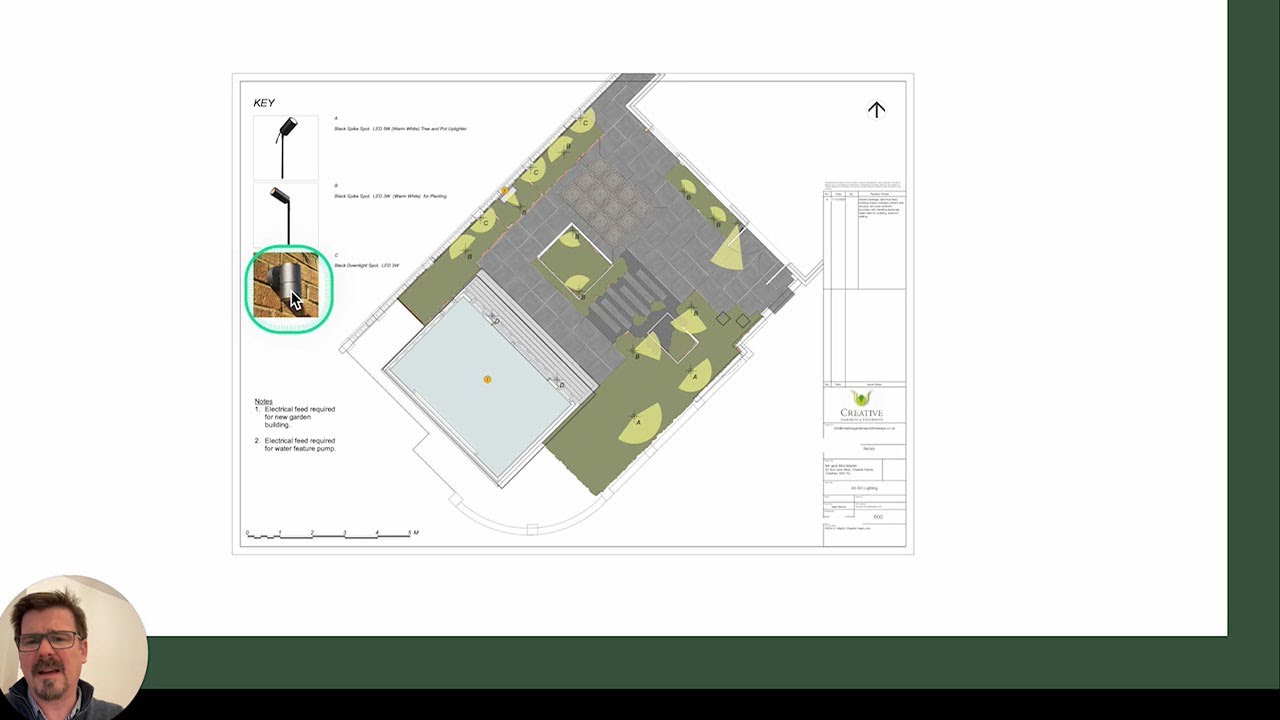

Lighting and electrical setting out plans identify:

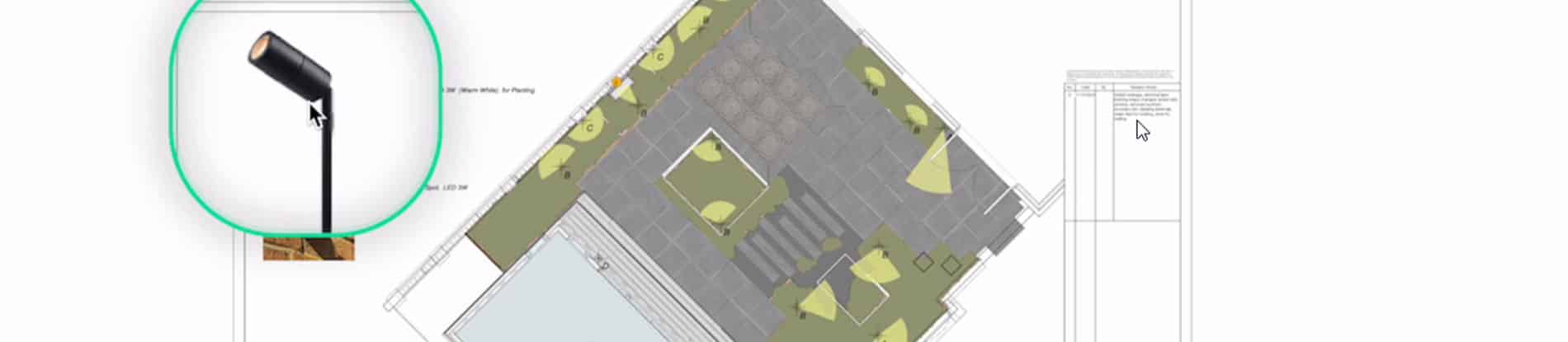

- The position of each light fitting, whether that is a spike spot in a planting bed, a downlighter on a wall or post, or an uplighter beneath a structural element
- Cable routes from the power source to each fitting
- Lighting circuit layouts, showing how fittings are grouped and controlled
- Water and electrical feed positions for features such as water pumps, irrigation systems and garden buildings
By planning all of this in advance, cables can be installed within conduits laid during the groundworks stage, ensuring it will run beneath finished paving rather than being surface-mounted or retrofitted later. This protects the cables, keeps the garden looking clean and considered, and avoids the disruption of having to lift finished paving to install services that were not anticipated at the planning stage.
How Different Technical Drawings Work Together
One of the most powerful aspects of a properly developed set of setting out plans is the way individual drawings interact with and reinforce one another.
Each drawing addresses a specific layer of the project, such as:
- The groundworks plan establishes what happens below ground
- The paving plan builds on that foundation, positioning surface materials accurately relative to the features below
- The lighting plan routes cables through the groundworks zone and positions fittings in relation to the structural and planting layout.
When these layers are developed together, clashes and conflicts can be identified and resolved at the drawing stage. This coordinated approach is the reason why complex projects can be delivered smoothly and efficiently, even when they involve multiple contractors working across different disciplines.
It also reflects the broader garden design process in which setting out plans sit. The garden design process is a structured, multi-stage journey from initial concept through detailed design to construction, each stage building on and informing the last.
Understanding the full picture, including how planting plans and other technical drawings contribute to this process, helps homeowners appreciate the level of thought that goes into every professionally designed garden.
Why Professional Garden Designers Invest Time in Setting Out Plans
Developing a comprehensive set of setting out plans takes time, particularly for a bespoke garden with multiple features and levels. While this stage can represent a significant proportion of the overall design fee, it’s an investment that helps ensure the project runs smoothly and the finished garden is built exactly as intended.
Without comprehensive setting out plans, construction becomes far more difficult to manage. Decisions that should have been finalised during the design phase are left to the installation team, increasing the likelihood of mistakes.
From drainage and foundations to paving layouts and lighting, even small inaccuracies can have a significant impact on the finished result.
Each of these scenarios costs more to resolve than it would have cost to prevent. More importantly, each one has the potential to compromise the finished garden in ways that cannot always be fully corrected.
Professional garden designers invest in thorough technical planning because it is the most reliable way to protect both the client’s investment and the integrity of the design.
If you are exploring what to look for when commissioning a landscaping project, see our post 10 Things to Ask Before Starting a Landscaping Project.
Start Your Bespoke Garden Design with Creative Gardens & Driveways
Setting out plans are one of the most important investments in any professionally designed garden. They are the stage at which a creative vision becomes a buildable reality, and they are central to the approach that Creative Gardens & Driveways has refined across more than 25 years of delivering bespoke gardens throughout Cheshire and the North West.
Every project we undertake is supported by a comprehensive set of setting out plans and technical drawings, developed by our experienced design team before construction begins. This thorough approach to planning is one of the key reasons why our installation teams can deliver every project with the precision and confidence our clients expect.
If you are considering a garden transformation, contact our team today to arrange your free consultation.
Frequently Asked Questions
What are setting out plans in garden design?
Setting out plans are detailed technical drawings that show exactly where every feature in a garden should be built. They include precise measurements, reference points and construction details for elements such as paving, drainage, foundations, lighting and structures, helping installation teams deliver the design accurately.
Why are setting out plans important?
Setting out plans reduce the risk of mistakes during construction by providing clear instructions before work begins. They help coordinate every part of the project, improve communication between designers and installers, and ensure the finished garden reflects the approved design.
What’s the difference between a garden design and a setting out plan?
A garden design shows the overall appearance and layout of the finished space, while a setting out plan provides the technical information needed to build it. Once the design has been approved, setting out plans translate the concept into accurate construction drawings that guide every stage of the installation.
